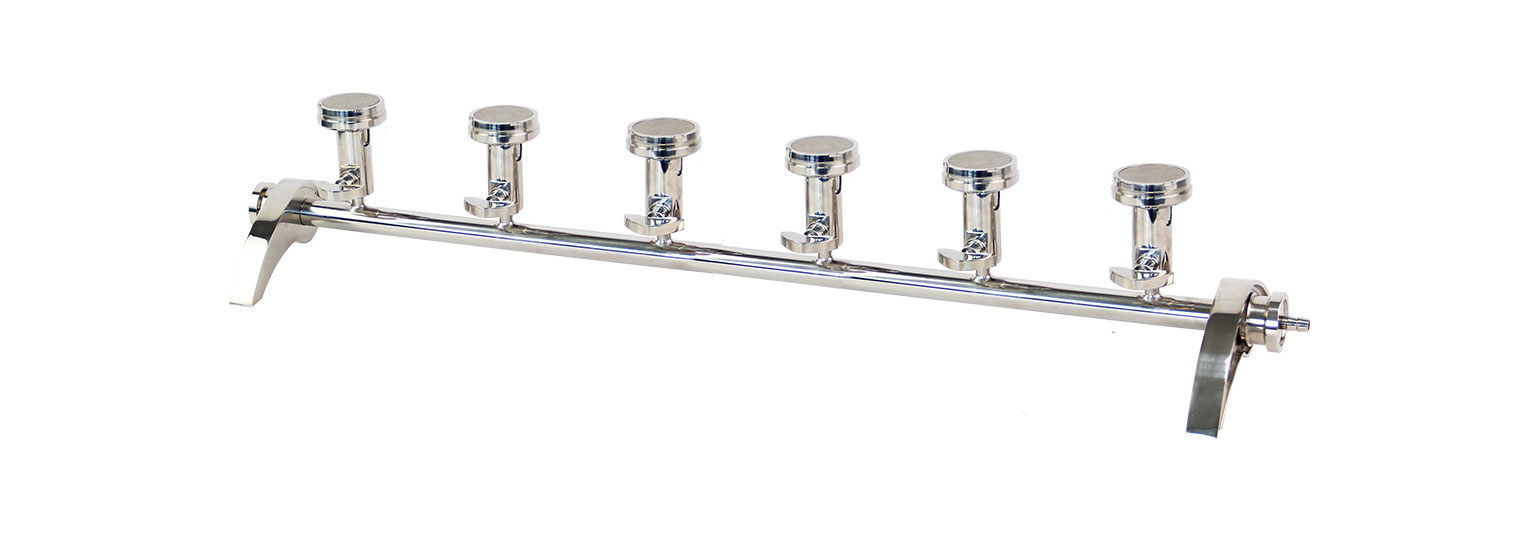

HTY-30X is new designed microbial limit test manifold. It is simple structure, easy to diassemble.

A complete bioburden filtration system consists of manifold, pump, funnels and membrane filters.

Unique design for easy cleaning and decontamination;

Can be installed 1 /3/ 6 filtration heads;

Different type pump heads can be selected;

Pump heads can be removed quickly for heat sterilization;

Quick-fit connectors for the pump tubing.

Fit for these funnels: F47,F47-R250, F60-R250, F47B.

Net Weight：

       HTY-301A/B/C: 1.8kg/2.0kg/1.8kg

       HTY-303A/B/C: 3.6kg/4.0kg/3.6kg

       HTY-306A/B/C: 5.4kg/6.2kg/5.4kg

Materials: SUS316L

Membrane filter diameter: Φ47mm, Φ60mm

Dimensions:

      HTY-301A/B/C: 170mmx180mmx115mm (L x W x H);

      HTY-303A/B/C: 410mmx180mmx115mm (L x W x H);

      HTY-306A/B/C: 770mmx180mmx115mm (L x W x H);

Filtration Heads type

      A: PF47A

      B: PF60A

      C: PB47A

Microbial limit test  laboratories.

Used together with the  laboratory pump, filtration funnels and membrane filters to establish one filtration system.
